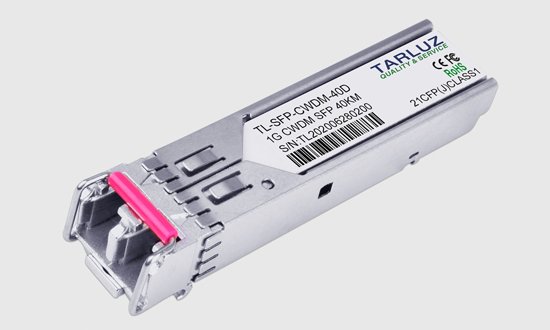

TARLUZ SFP Transceiver series with various types for different applications like SONET/SDH, xWDM, Ethernet, Metro Network, Wireless Network and Transmission network. The transceivers support rates from 155M to 4.25Gbps via single fiber or duplex fiber, the transmission distance from 100m to 160km. All transceivers specifications and features are fully compliant with SFP MSA. TARLUZ SFP with perfect compatible performance, is economic solution compare with original factory with device suppliers.
- 产品特点
- 技术规格
- 产品应用
- 订购信息
- 文档下载
产品特点
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- 18-Wavelength CWDM DFB LD Transmitter from 1270nm to 1610nm, with Step 20nm
- Digital Diagnostic Monitoring
- Internal Calibration or External Calibration
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
技术规格
注:本图可能因为众多因素进行修改,恕不另行通知,请随时联系我们获取最新资料
产品应用
- Fiber Channel Switch Infrastructure
- ATM Switches and Routers
- SONET / SDH Switch
- Other optical link
- Fast Ethernet, Giga Ethernet
订购信息
Type |
Distance | Data Rate | Wavelength | Fiber | Connector | Temp. |
TL-SFP-CWDM-40D |
40KM | 1.25G | CWDM | SMF | Duplex LC |
0 ~ 70°C |
TL-SFP-CWDM-80D |
80KM | 1.25G | CWDM | SMF | Duplex LC |
0 ~ 70°C |
TL-SFP-CWDM-120D |
120KM | 1.25G | CWDM | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-CWDM25-40D | 40KM | 2.5G | CWDM | SMF | Duplex LC |
0 ~ 70°C |
TL-SFP-CWDM25-80D |
80KM | 2.5G | CWDM | SMF | Duplex LC | 0 ~ 70°C |
TL-SFP-CWDM25-120D | 120KM | 2.5G | CWDM | SMF | Duplex LC |
0 ~ 70°C |
